• Bellows

Reliable Machine Part Protection

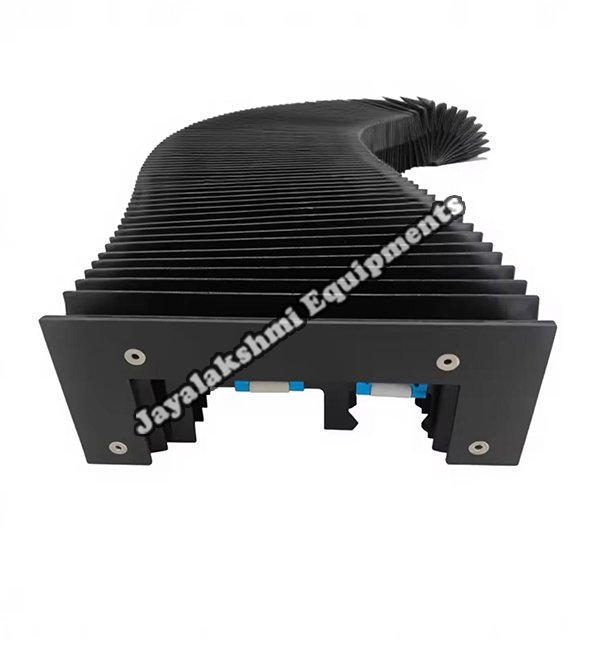

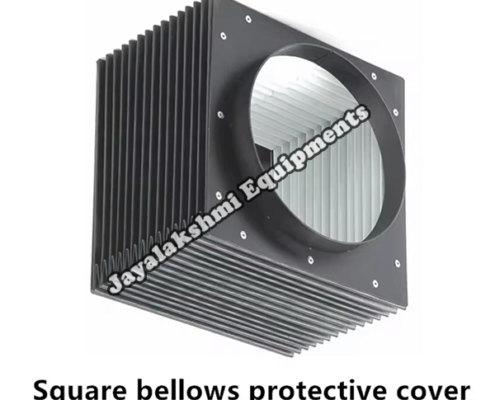

Bellows

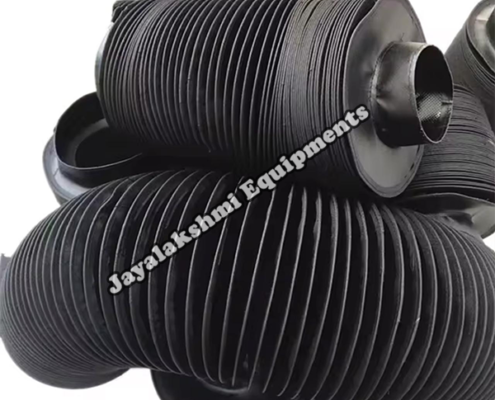

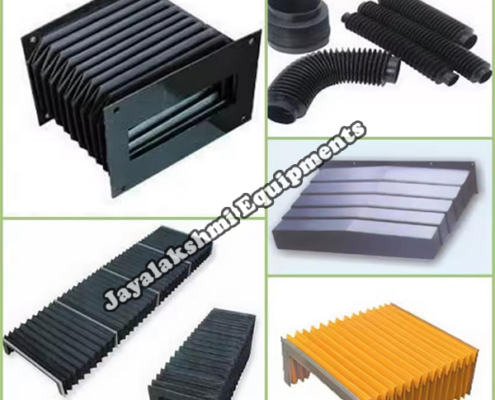

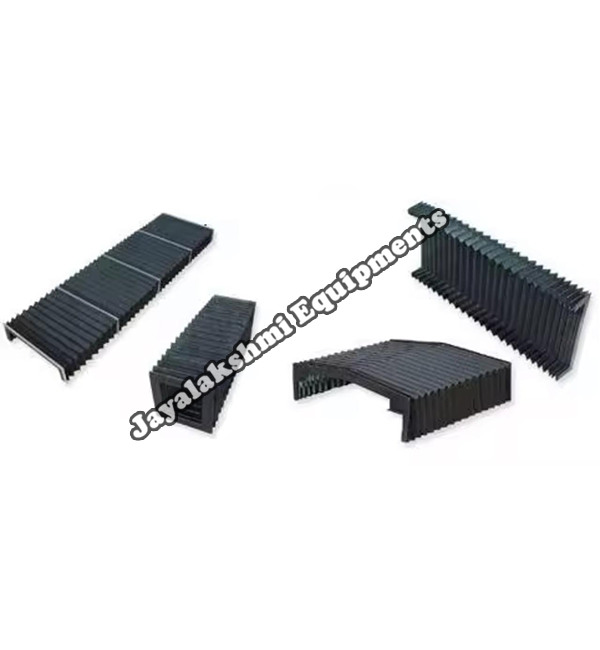

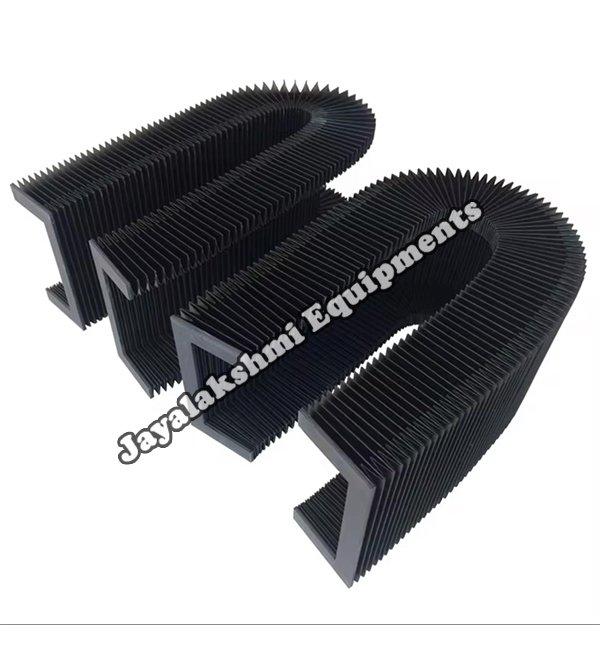

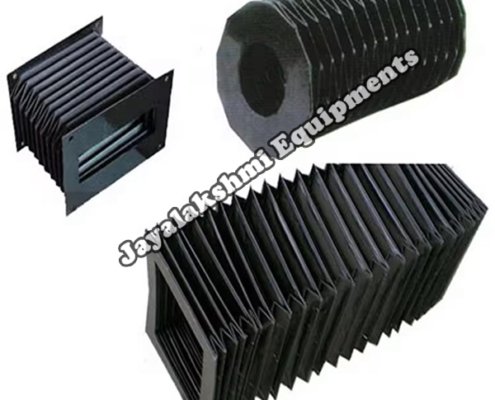

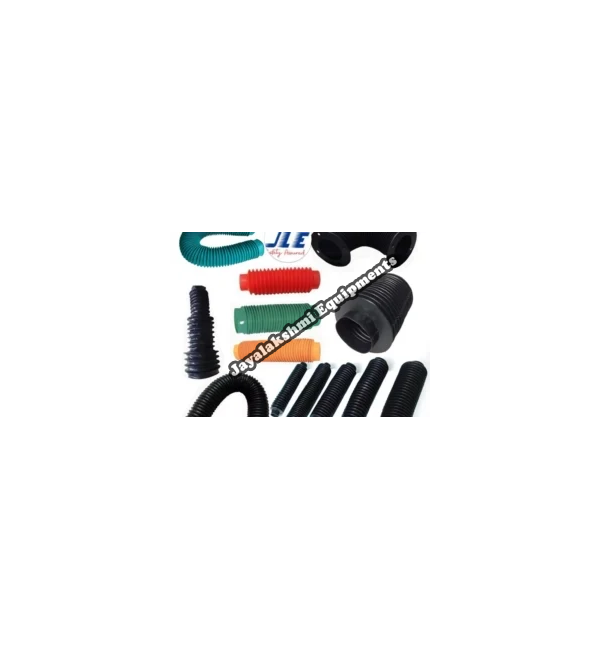

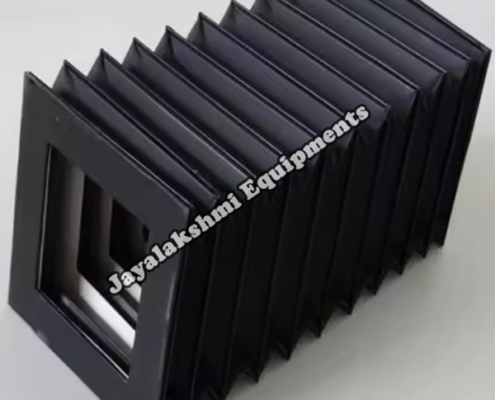

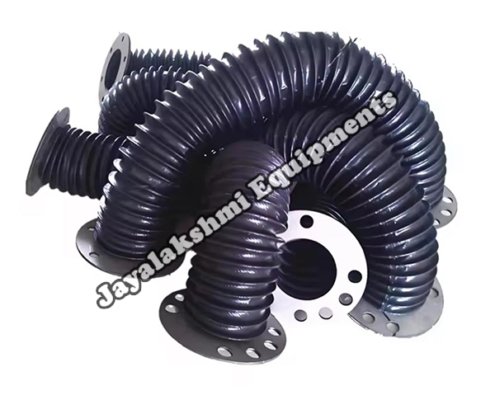

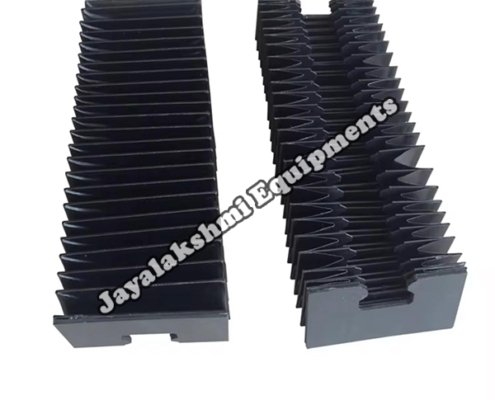

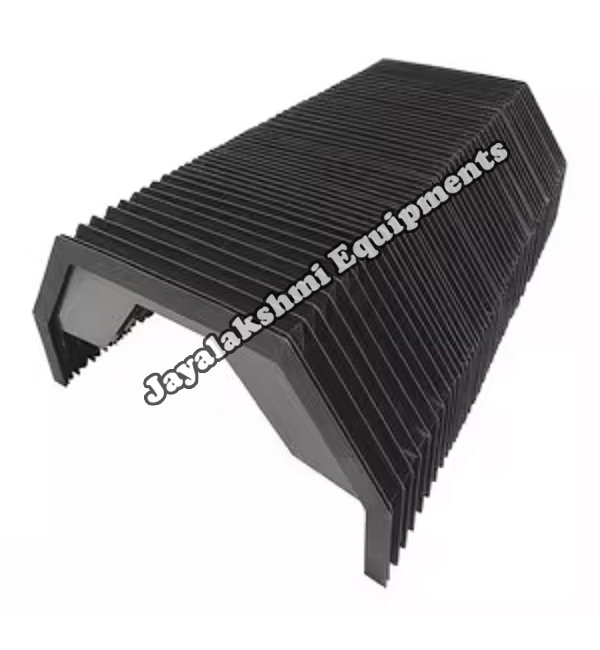

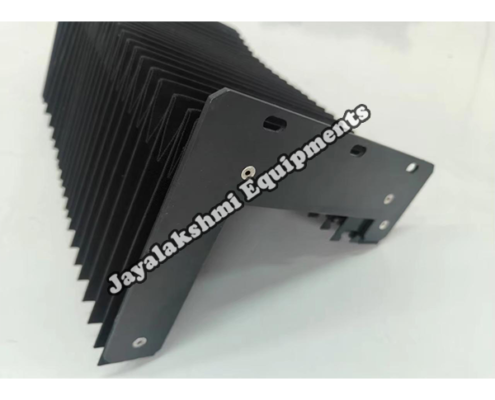

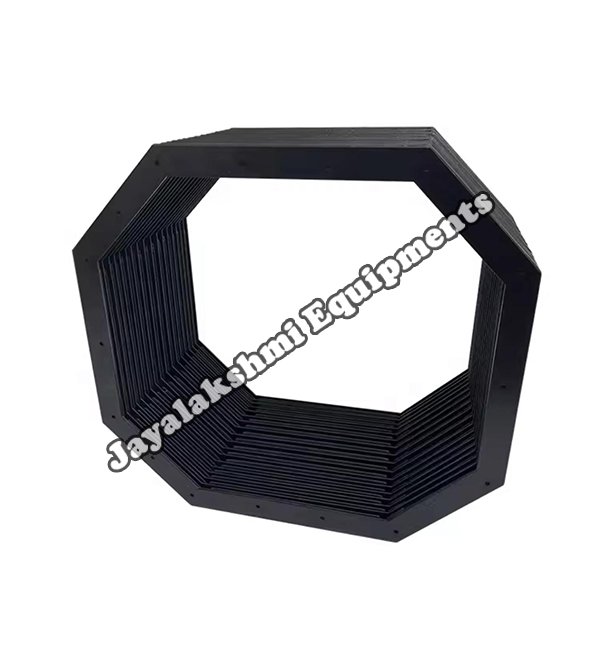

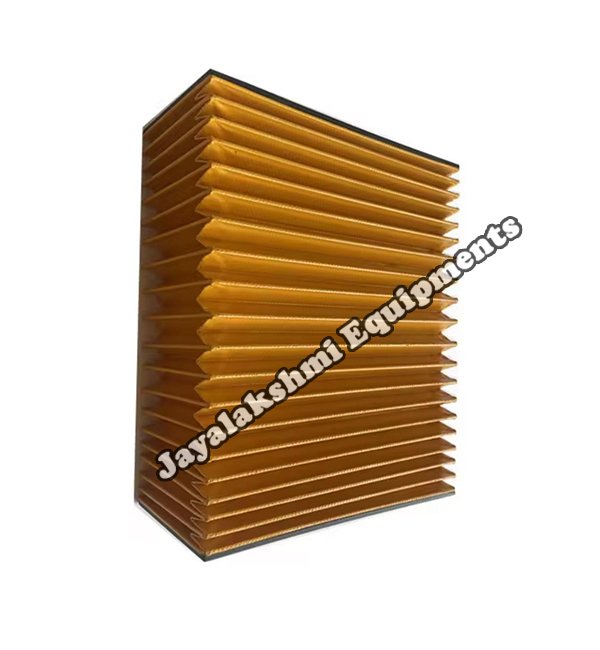

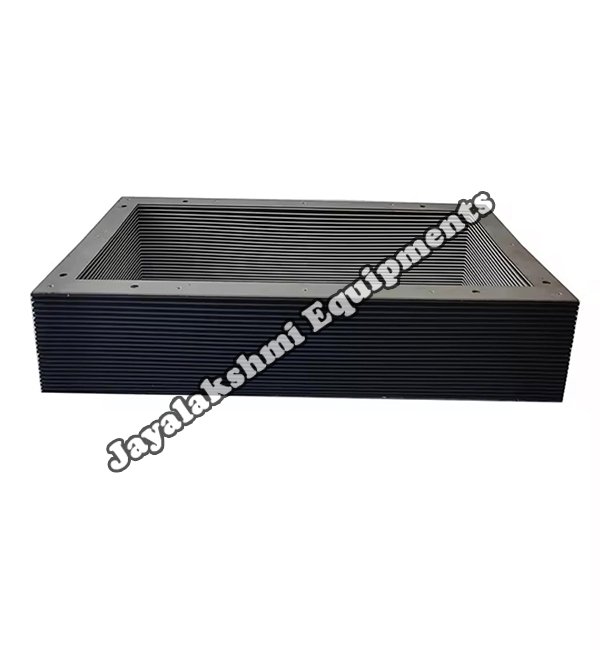

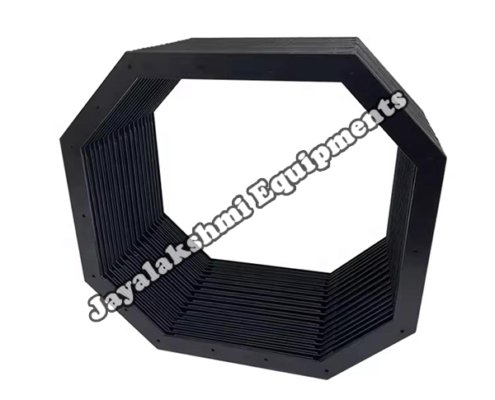

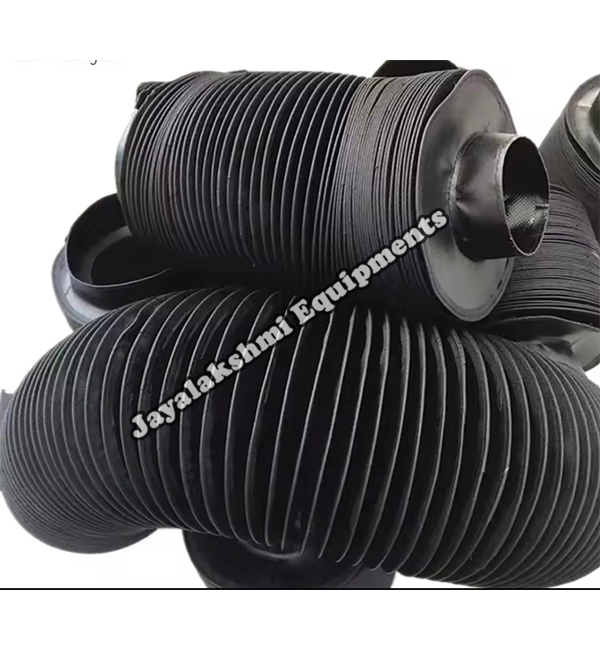

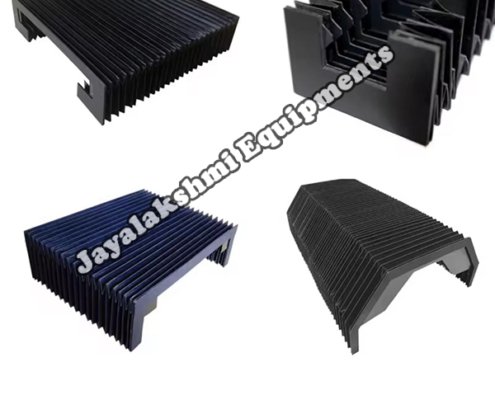

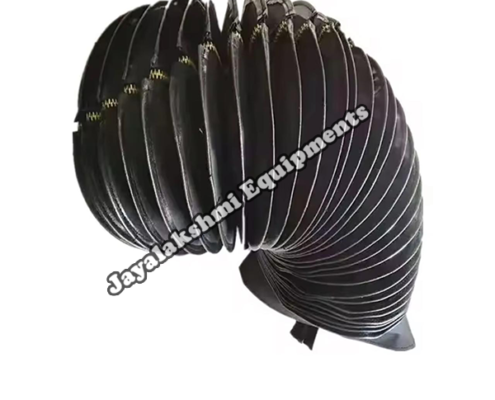

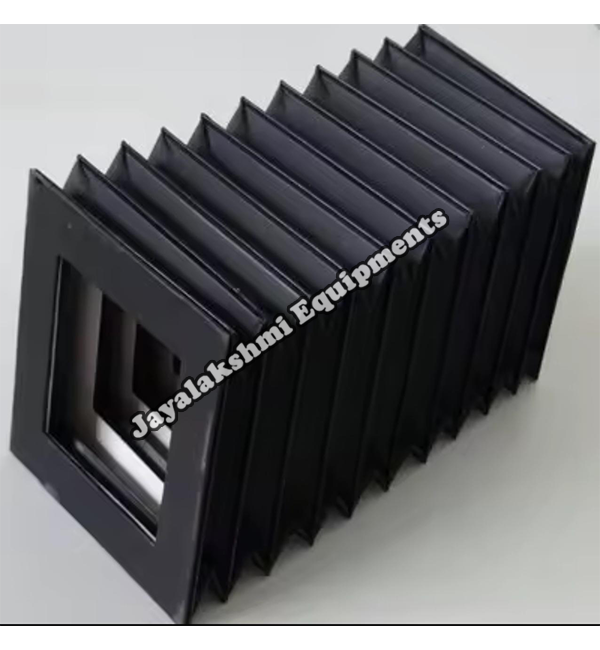

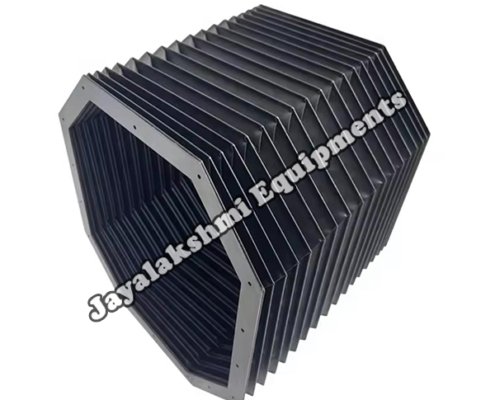

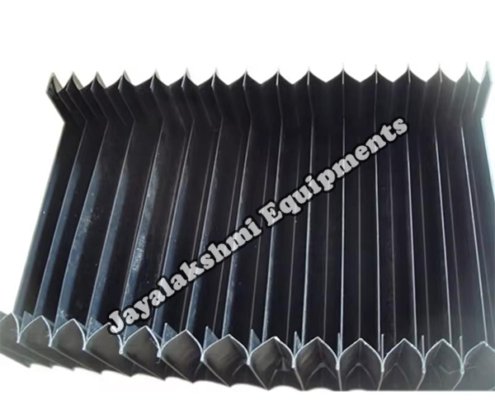

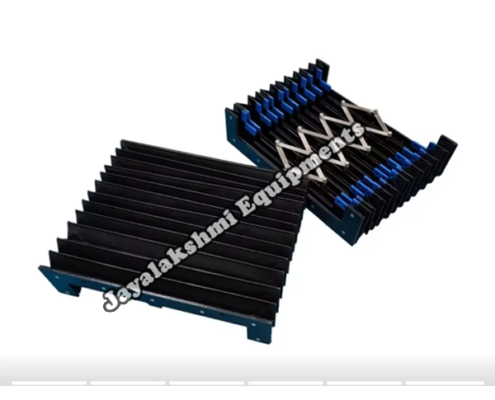

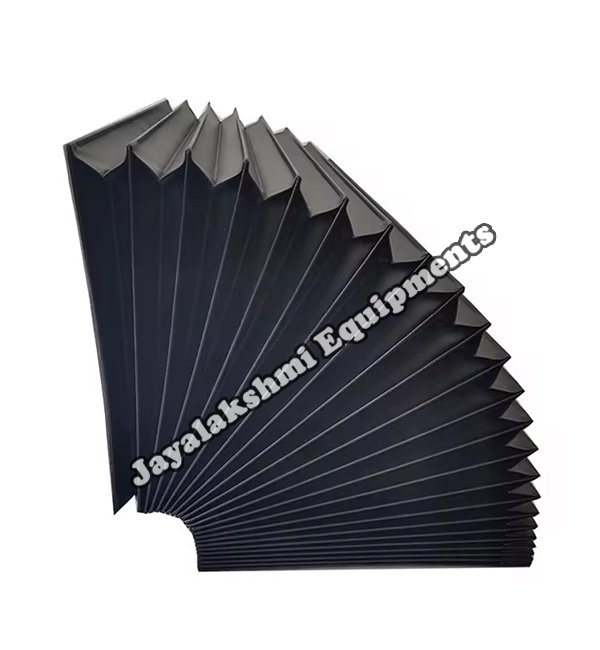

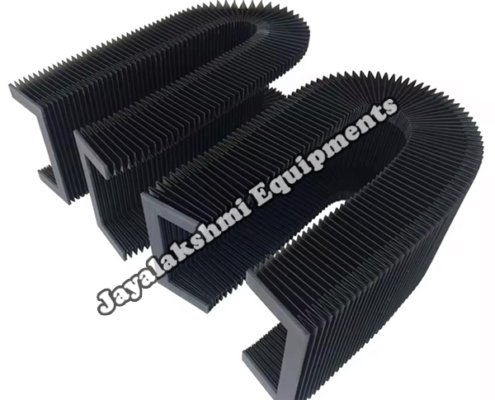

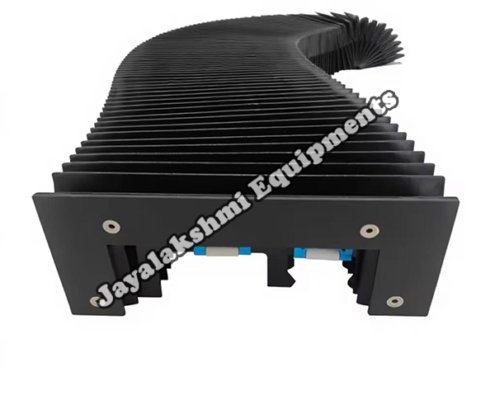

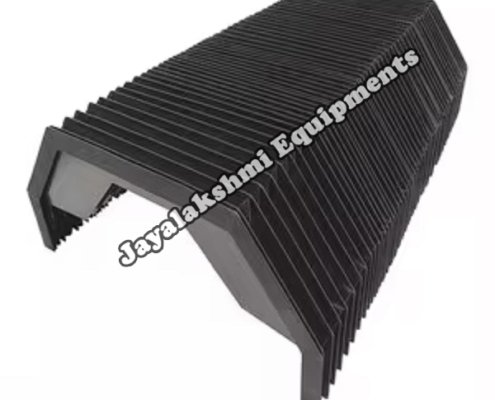

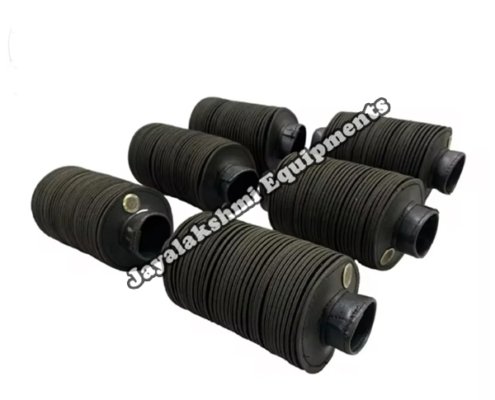

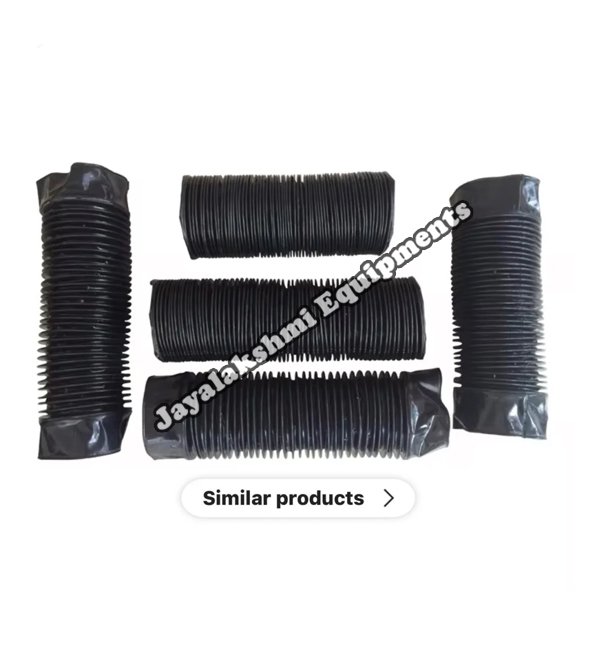

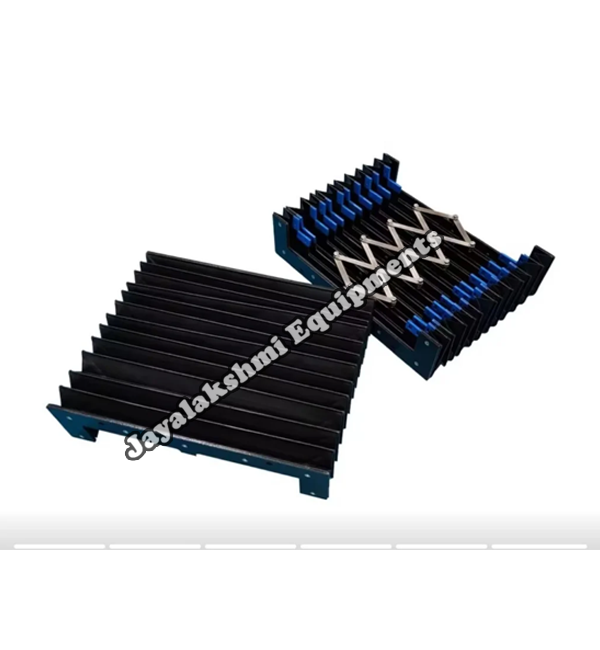

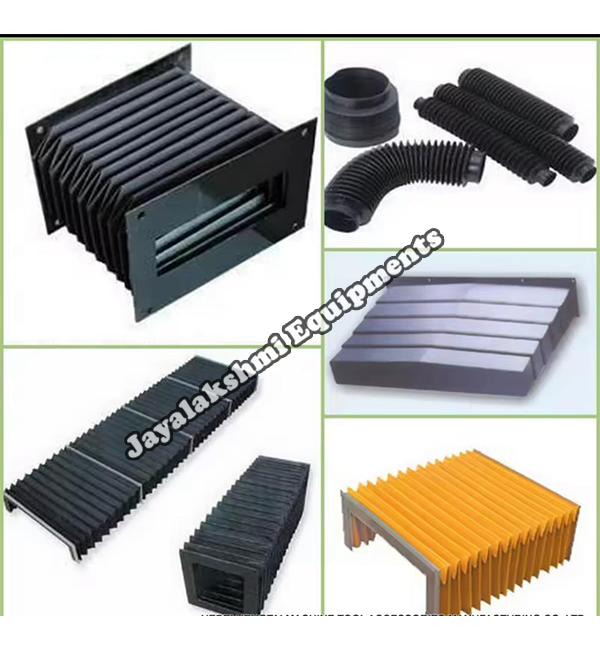

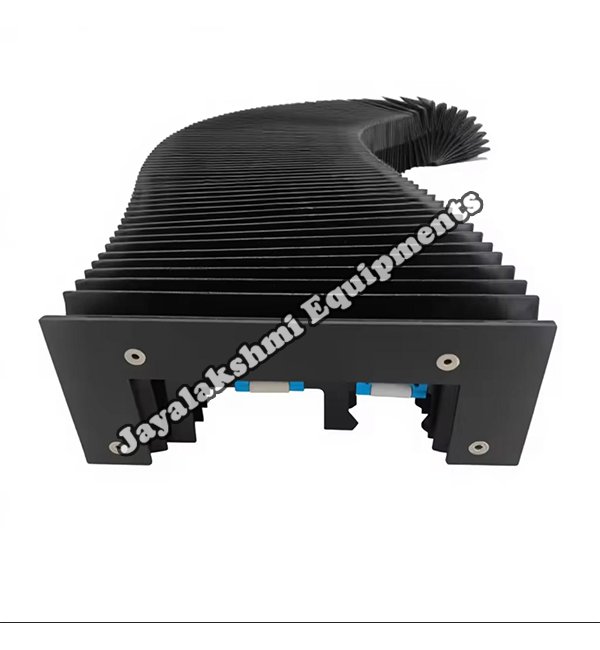

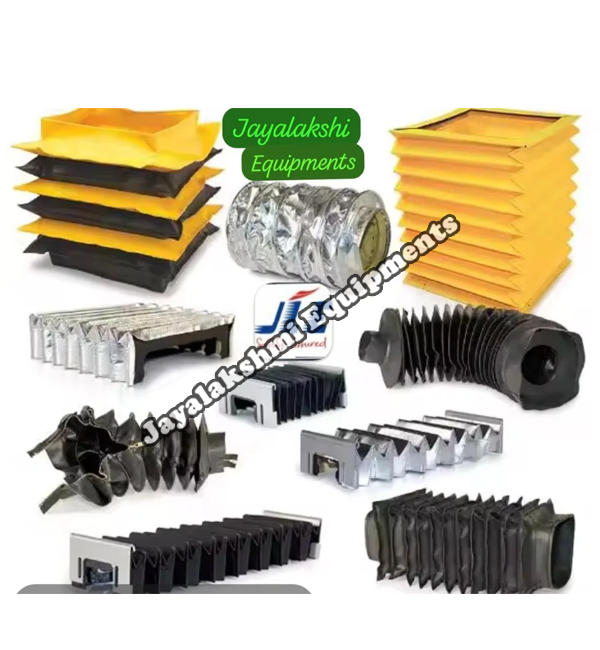

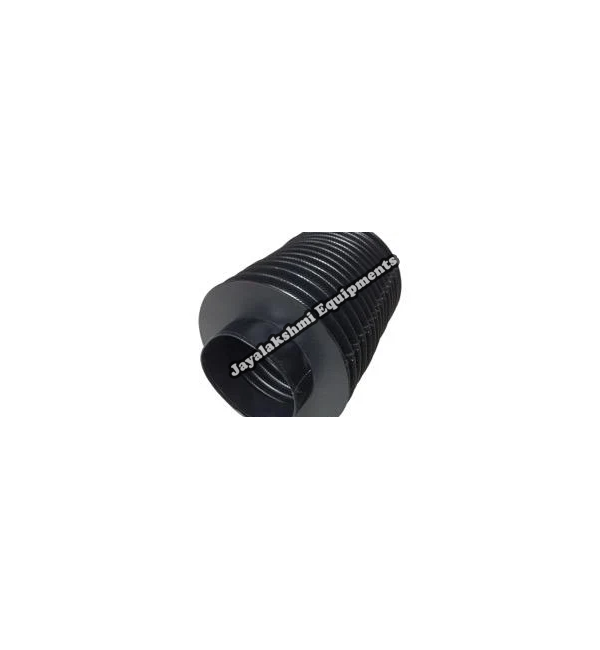

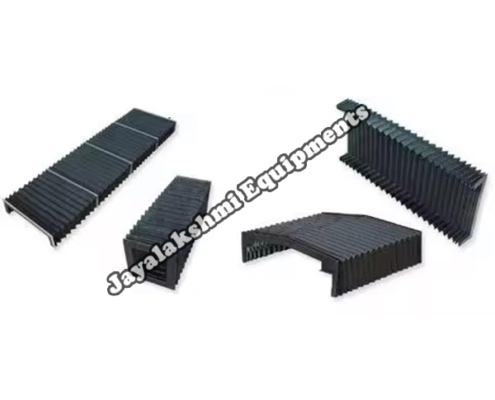

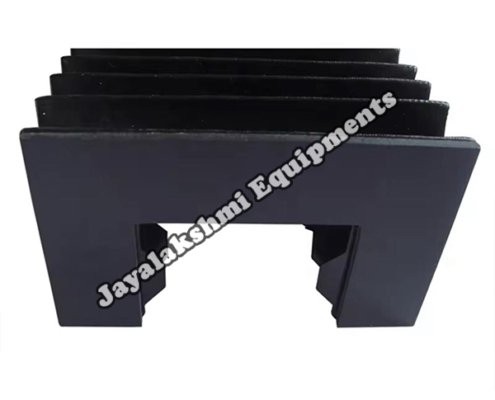

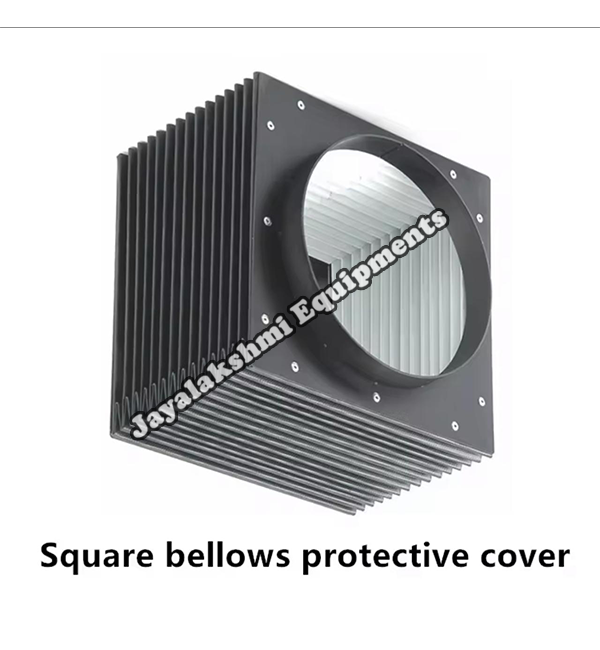

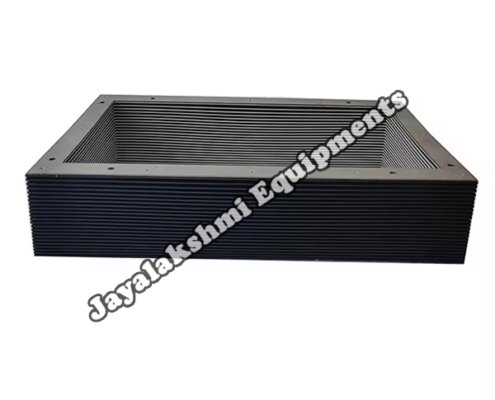

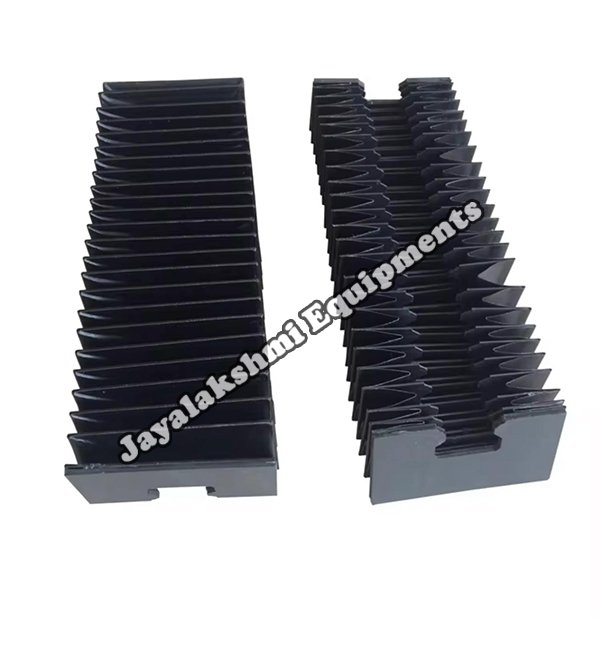

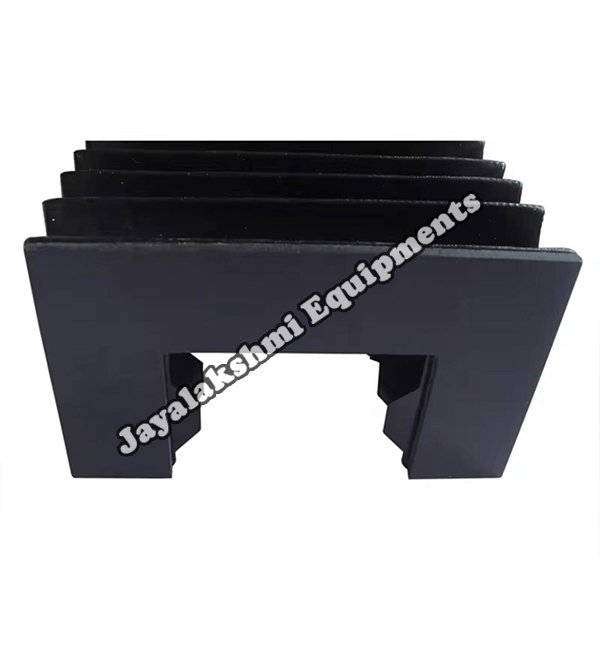

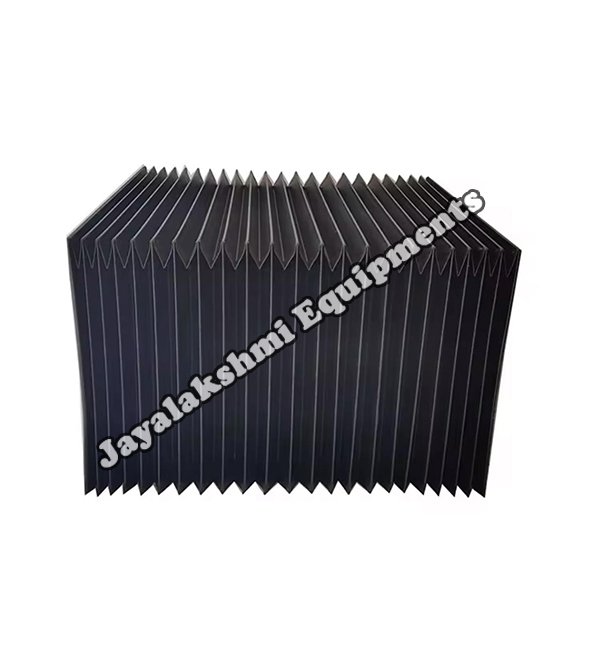

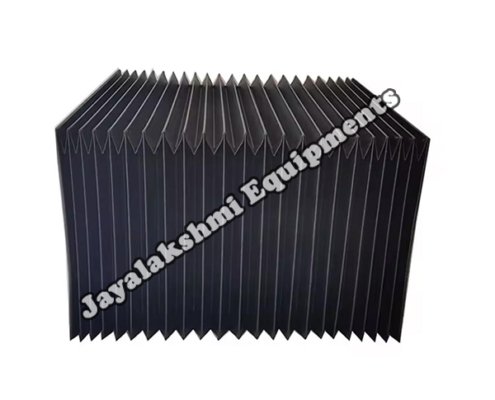

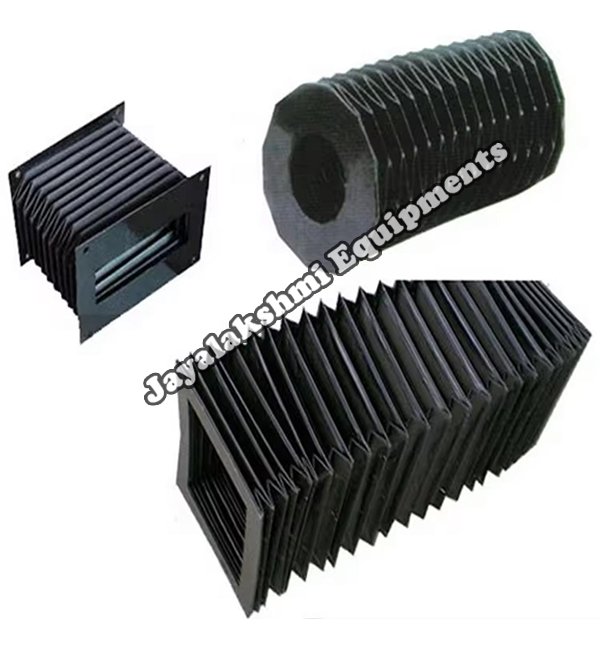

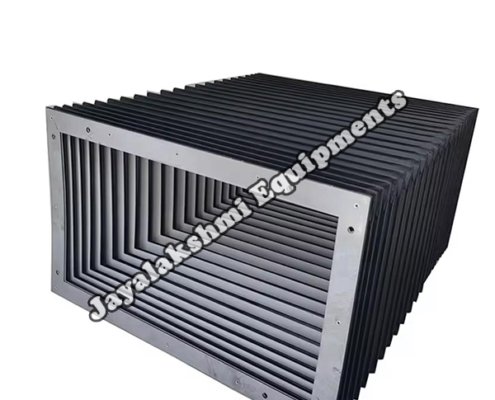

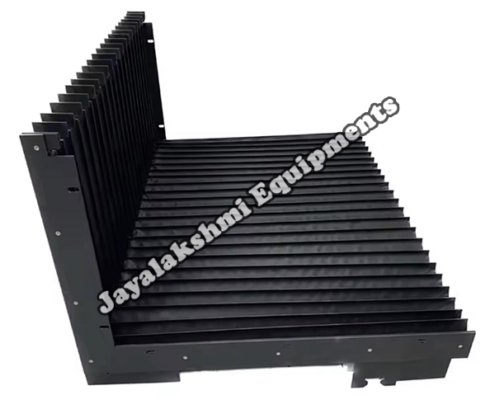

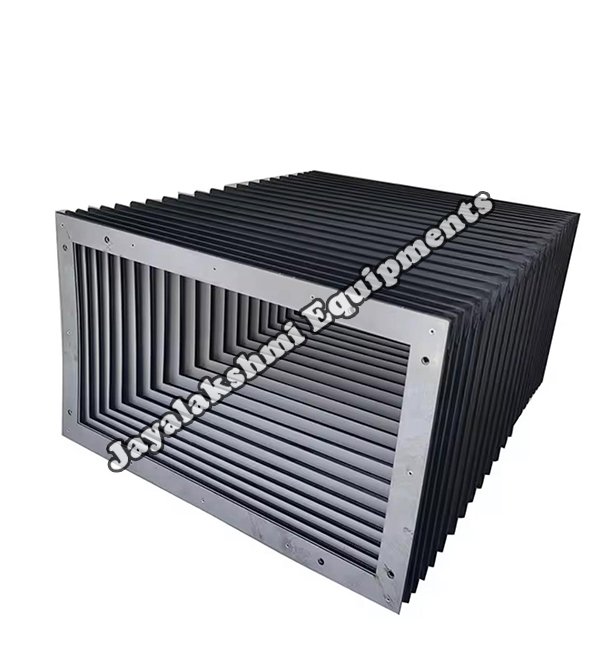

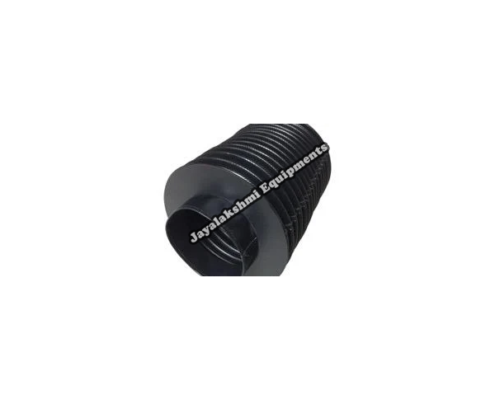

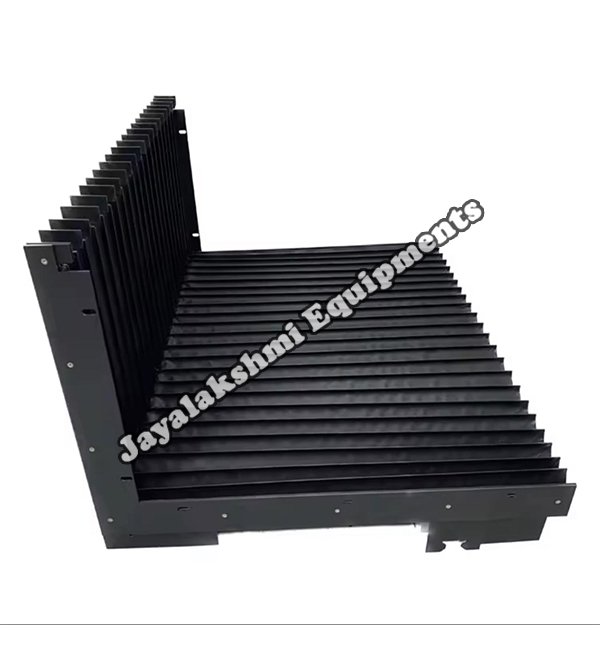

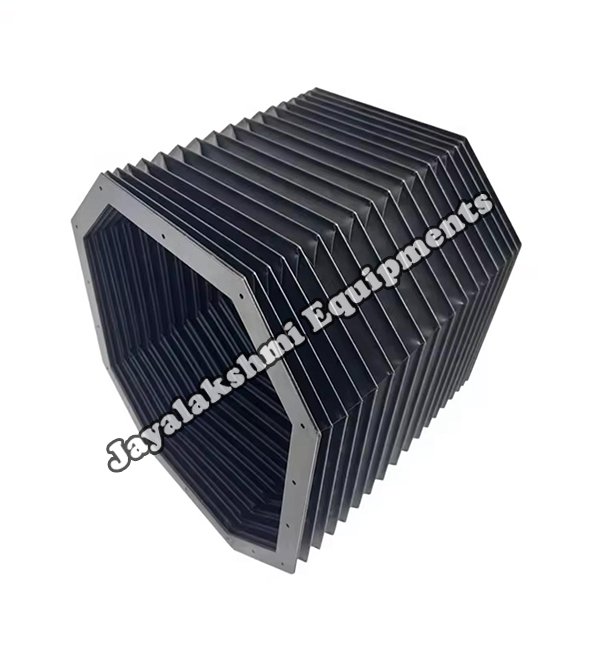

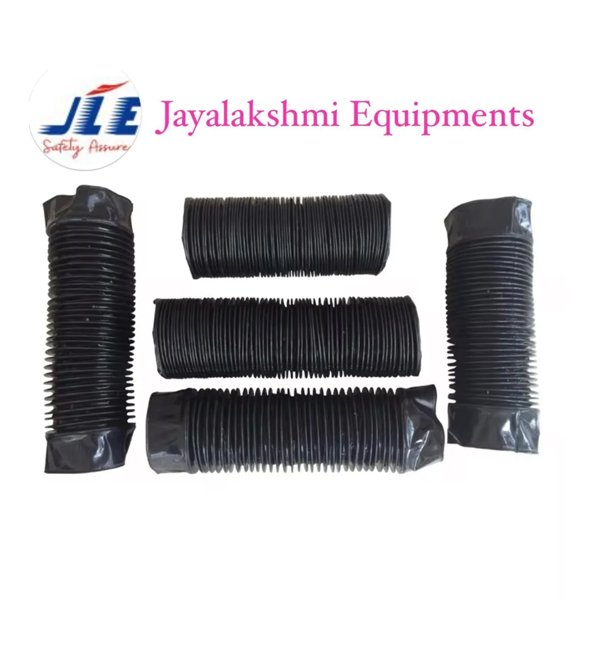

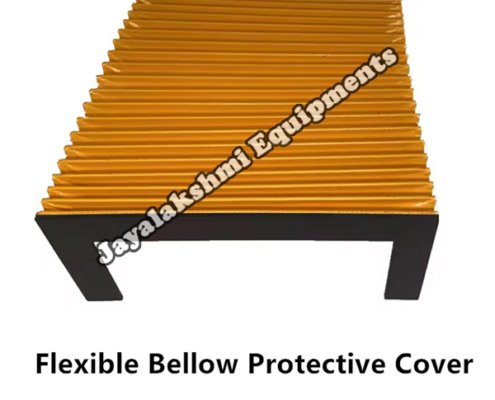

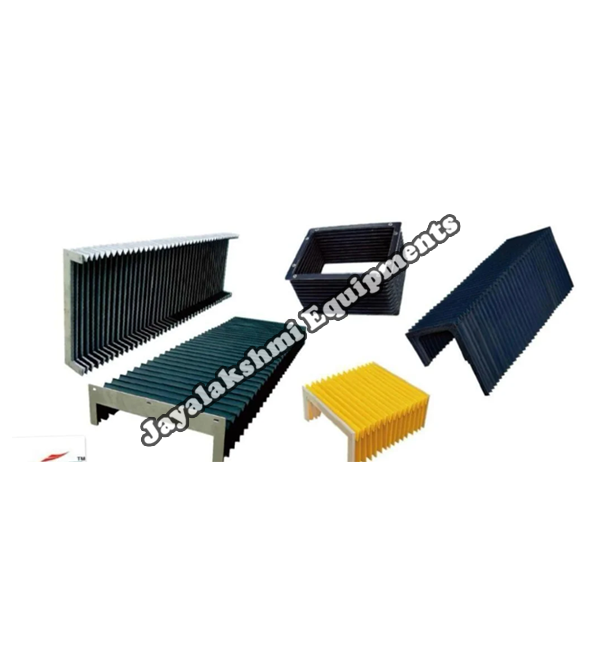

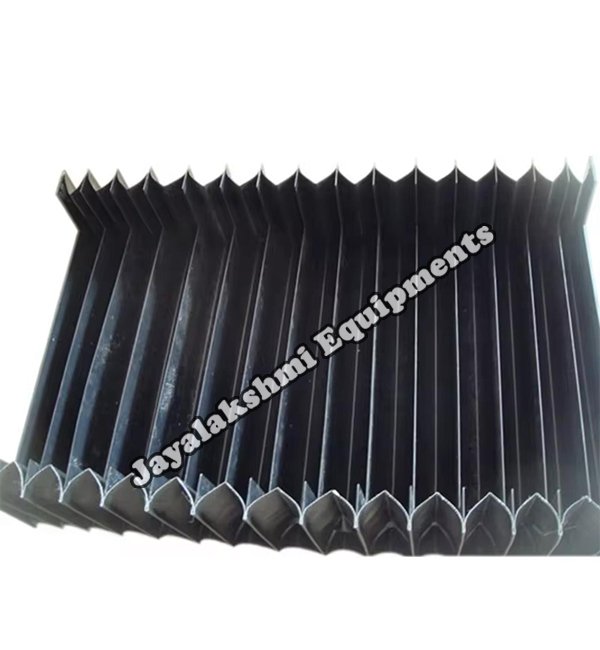

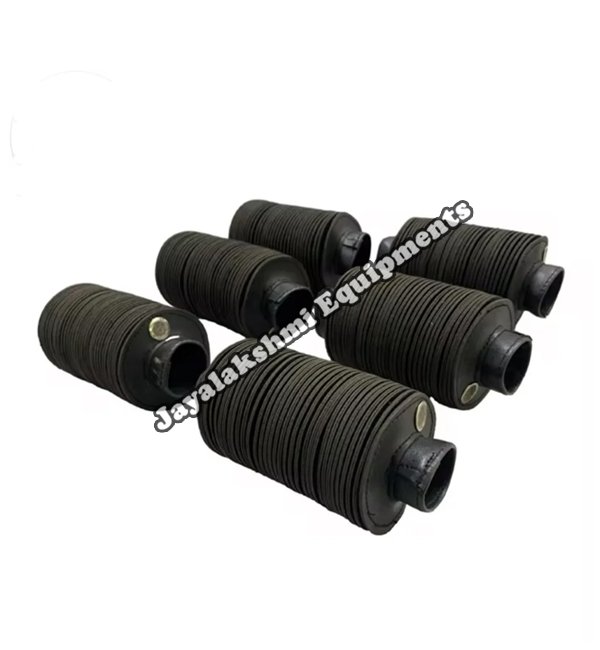

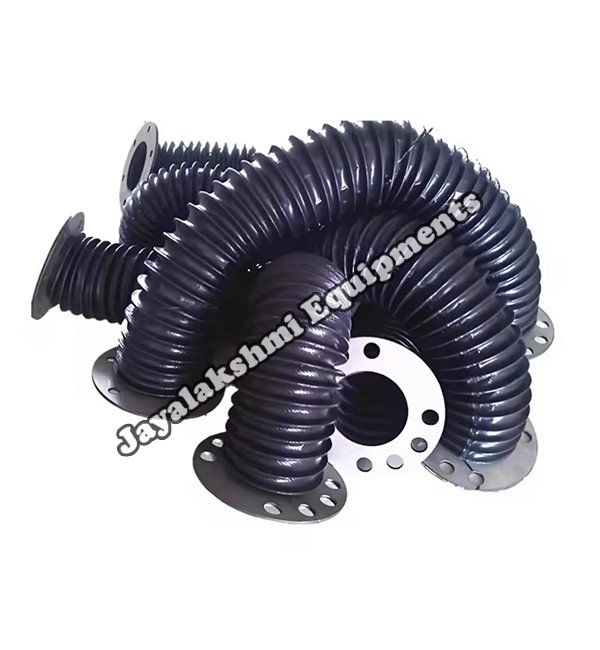

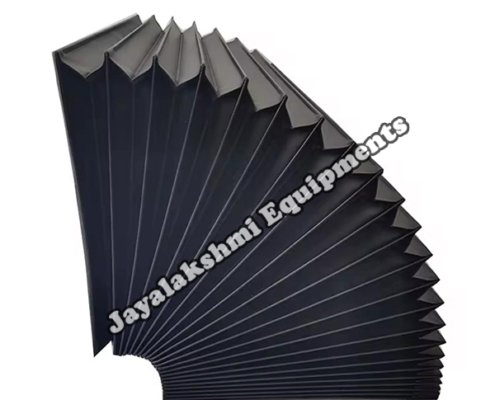

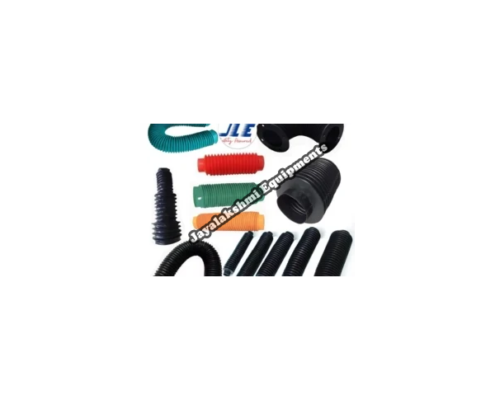

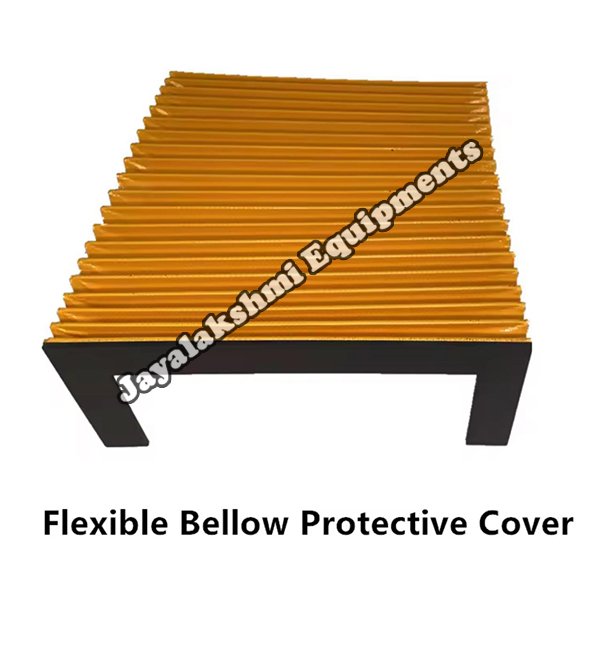

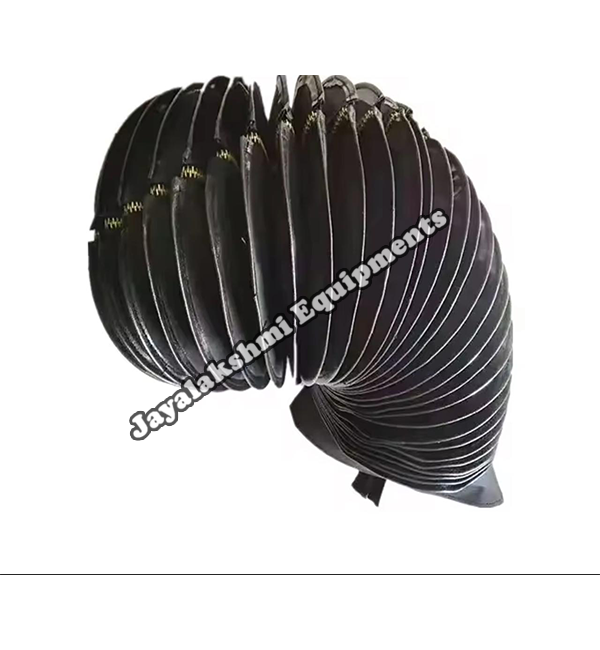

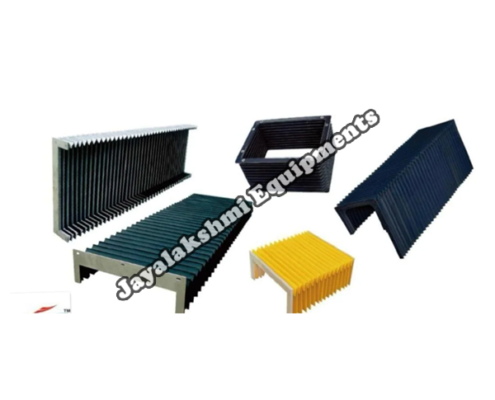

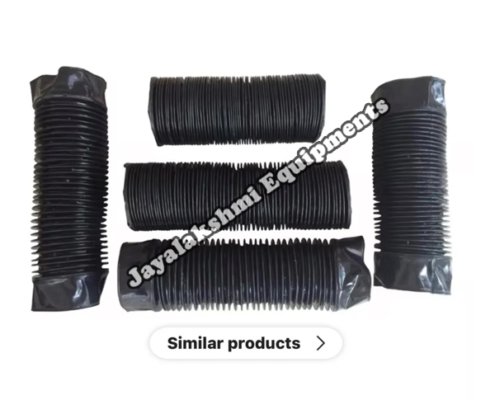

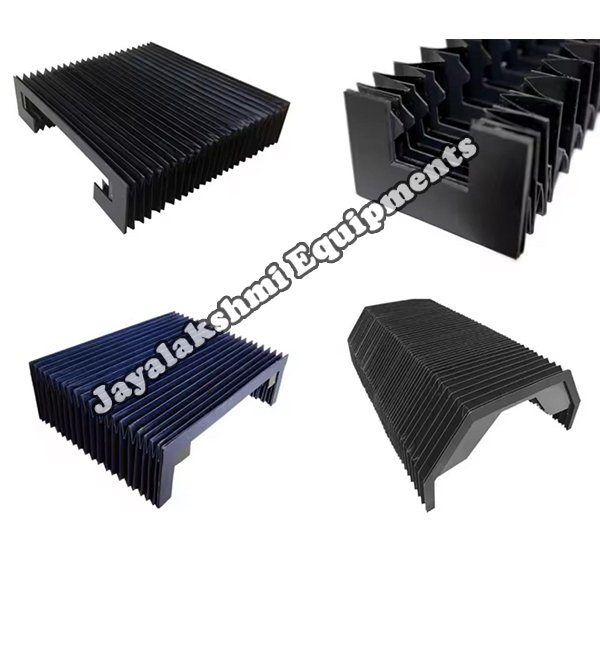

The belLows include JLE clcular & rectangular type covers . The Jayalakshmi belLows are designed applied for profecting important precision

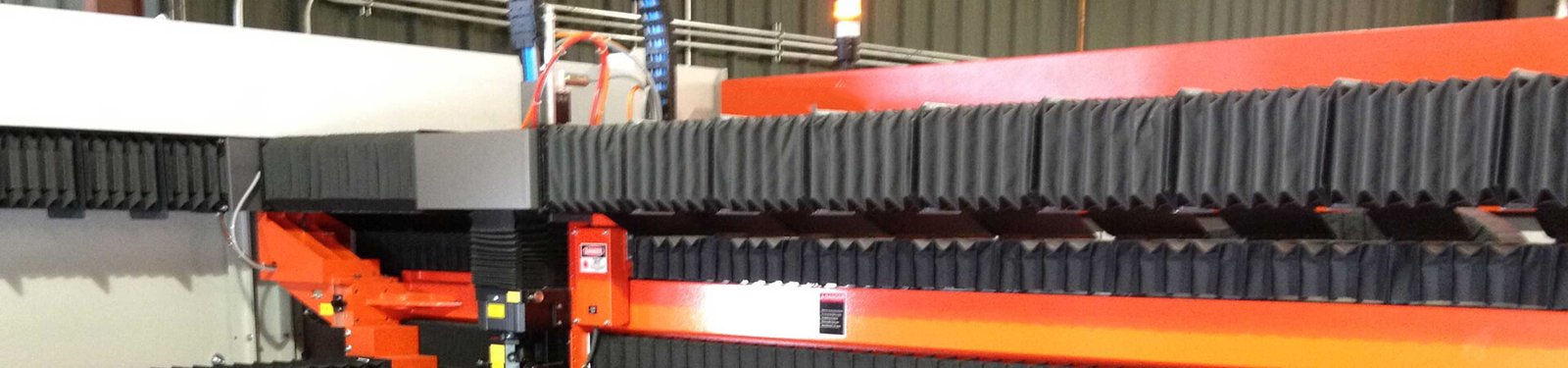

transmission parts with less sharings and chips generation. Typical applicaicants include linear guide ways or box ways. It may prevent quide ways from demaging by external face or pollution, and help to reduce drag face of parts movement.

Other benefits are increasing machine life and reducing the possibility of machine down. The Jayalakshmi Bellows are manufactured from the highest quality material. To accept to various enviornment conditions. we can offer various cover materials to choose from.

  • Fast Construction
  • High Durability
  • Cost Efficiency
  • Lightweight Strength

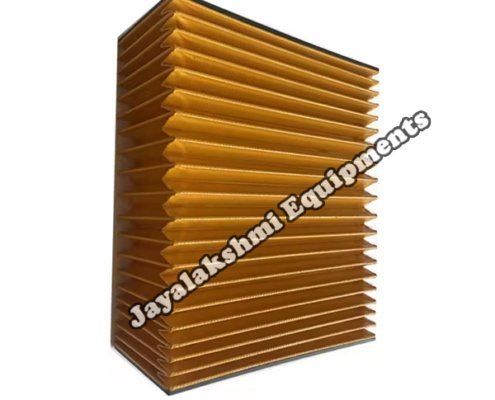

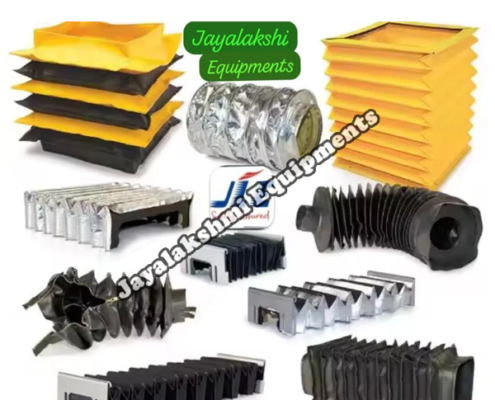

Rexine Leather Rubber Canvas

Material of Construction : Rexine, Leather, Rubber & Canvas

The standard Material thickness of the cover has various thicknesses to choose from, including 0.21mm, 0.26mm, 0.34mm, 0.65mm, and 0.8mm.

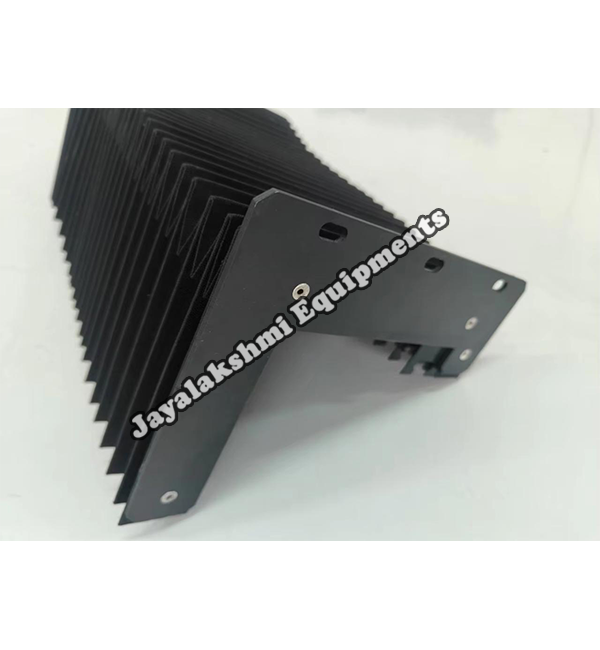

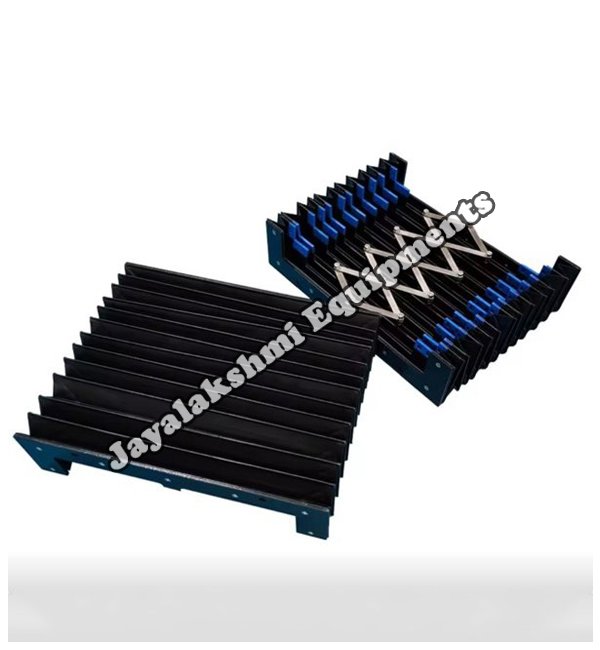

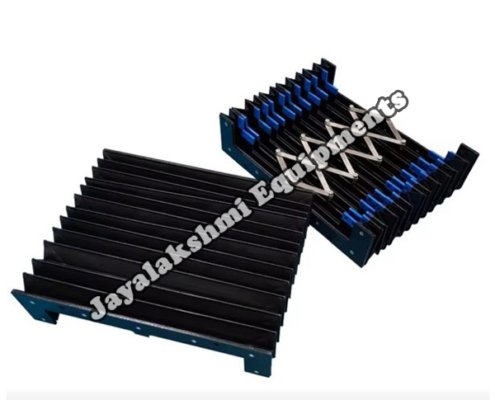

The standard thickness is 0.65mm. Each corrugation of cover is supported by a PVC stiffener for moving with guide ways, beautiful appearance, high protection performance, and long service life.

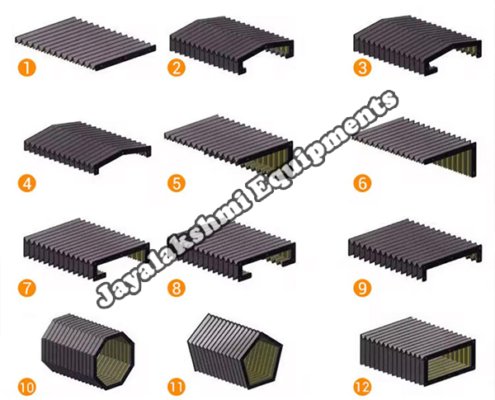

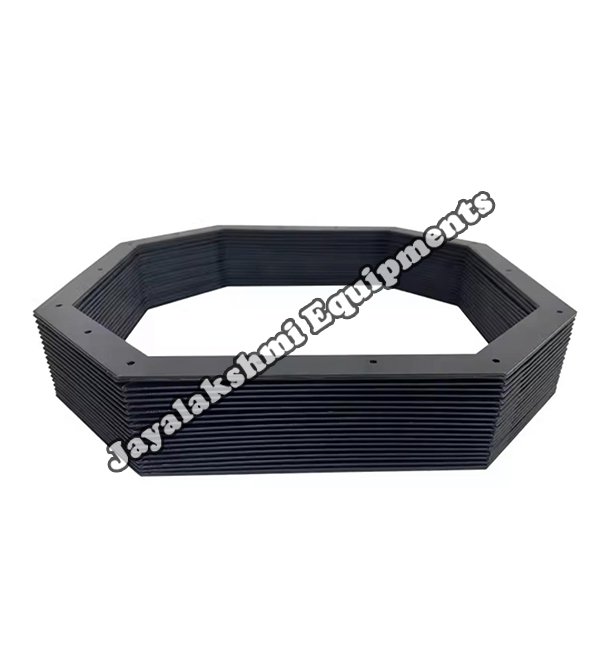

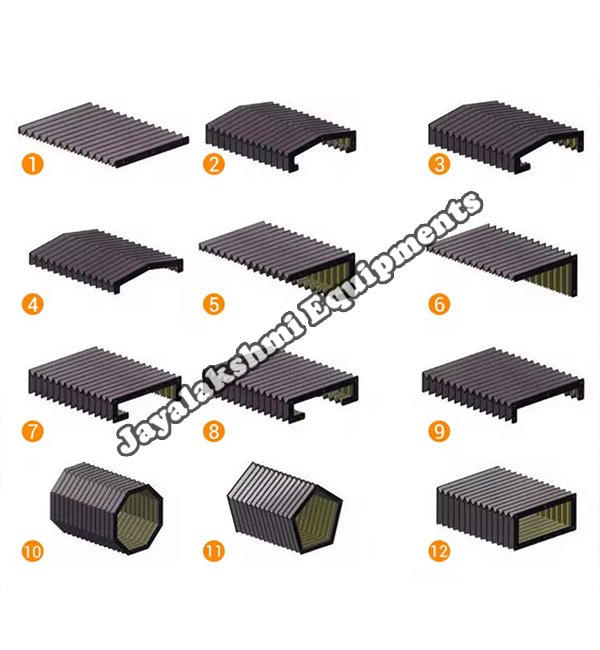

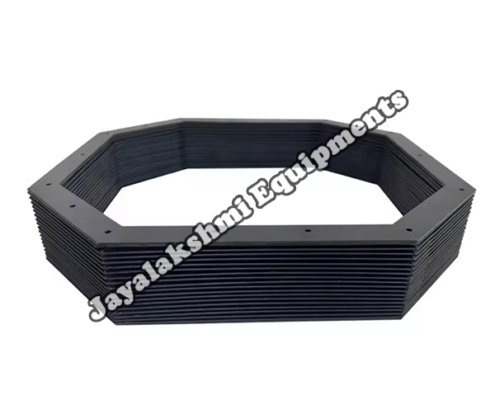

Various shapes, dimensions, mounting methods, moving speeds, and use conditions can be specialized to meet specific requirements.

Enhanced Cooling Finned Bellows

Finned Bellows

The finned belows are suitable for high-temperature, extra large travel for mounting metal sheet guard. Applicable machine includes horizontal and vertical machining centres, travelling columns and various CNC machinery.

The corrugation top is equipped with stainless steel or aluminium sheet for surface protection to prevent high temperature from damaging the cover while ensuring superior protection effect. Choice of protective metal sheets stainless steel with thickness 0.3mm and 0.4mm & 0.6mm. Aluminium alloy with thickness 1mm

The protective curtain is manufactured from environment-friendly material, featuring durability, water, 0il and dust-resistance. Moving speed up to 120m/min. (1G) Low noise and long service life. Cover shapes, dimensions,
mounting types, moving speeds can be made according to customer requirements.

Customized product, Easy to instal modular system is available. Suitable for mounting on any area and high speed travelling of machine tools, such as lathes and milling machine etc
